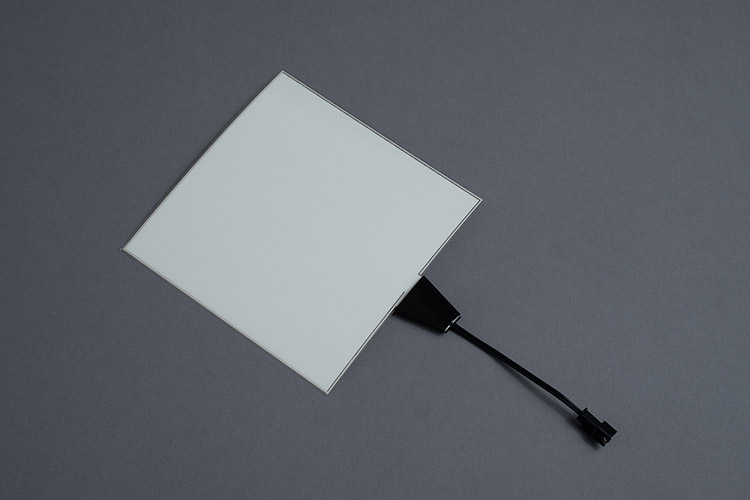

5 x 5 Inch Blue-Green Square Electroluminescent (EL) Light Panel


Only 19 left in stock

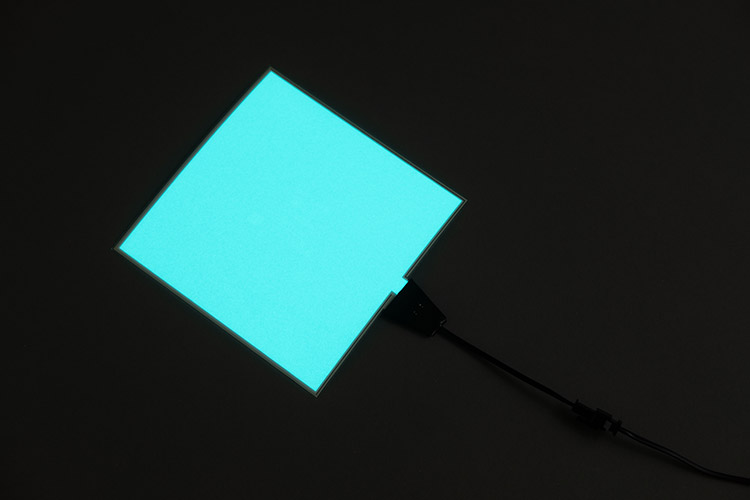

The Technolight 5 x 5 Inch Squaure EL Light Panel features our cool and natural Blue/Green phosphor color. This EL Lamp glows blue/green without any degradation from interior lighting or outdoor UV rays. One of the most popular colors for Electroluminescent backlighting.

Only 19 left in stock

SKU: 37253-P Categories: , ,

Product Description

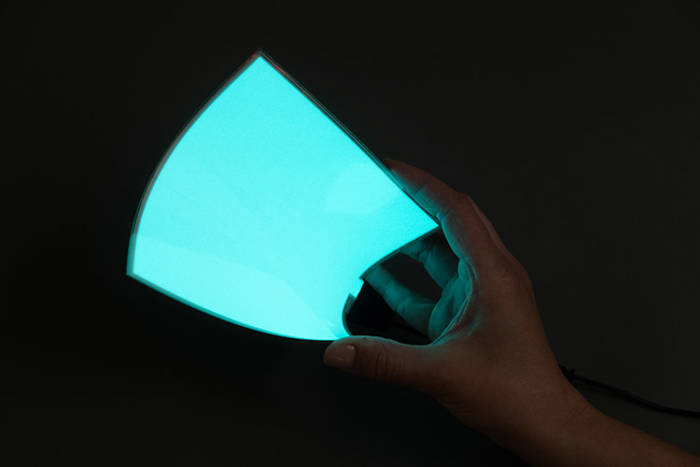

The Technolight 5 x 5 Inch Blue/Green Square Electroluminscent Light Panel features our latest in EL technology. Thin, flexible and ready to use with an easy latch connector, it is virtually plug and play. American made, with premium construction and the highest quality inks, this EL light panel can used in a wide variety of applications.

Total Lit Panel Area: 25 Sq In

Lit Panel Area LxW: 5″ x 5″

Overall Panel Dimensions: 5.24″ x 5.24″ x 0.012″

Thickness: 0.012″

Color: Blue-Green

Weight: 0.416 oz.

Printed Tail Dimensions: 0.8″ x 0.325″

Connector and Wire Description: 4″ Wire with 2-position JST connector

Brightness: @100V/400Hz 16.7 ft-L

Compatible Inverter Available

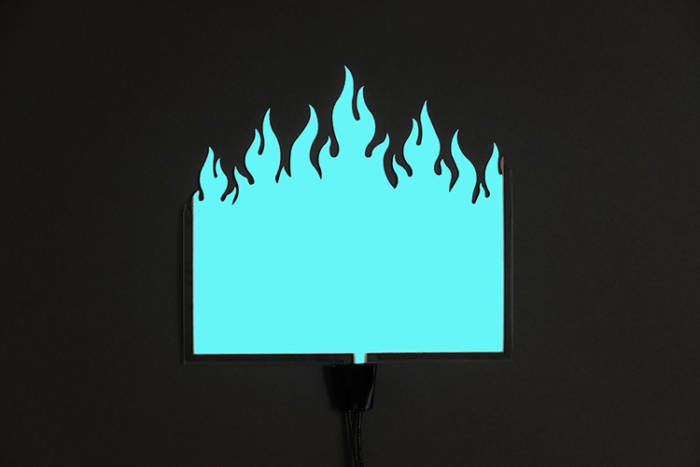

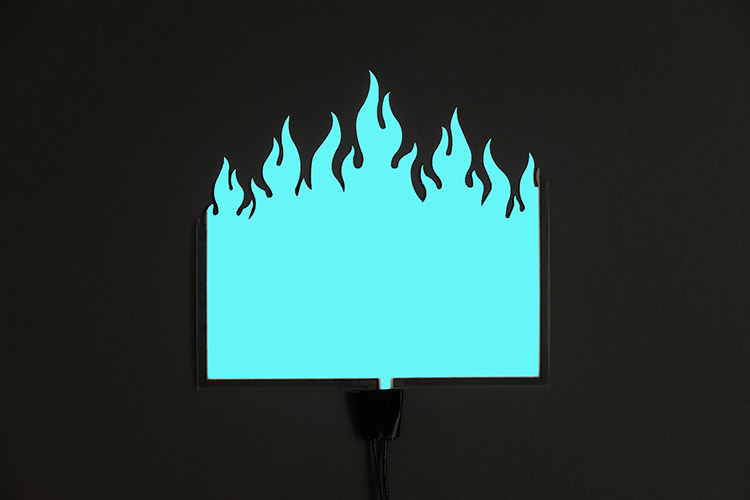

For cutting panel please reference the Technolight EL Spec Sheet

Download Spec Sheet
