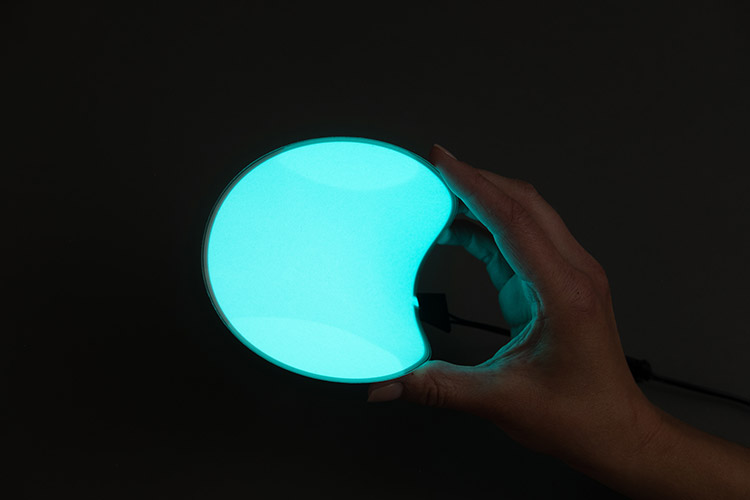

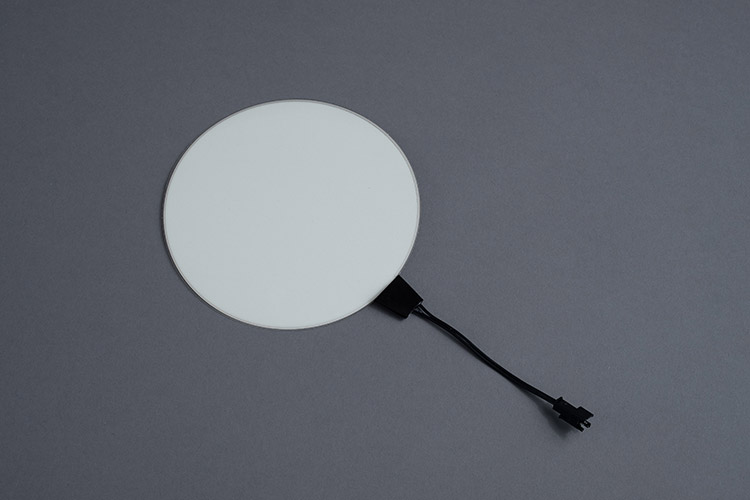

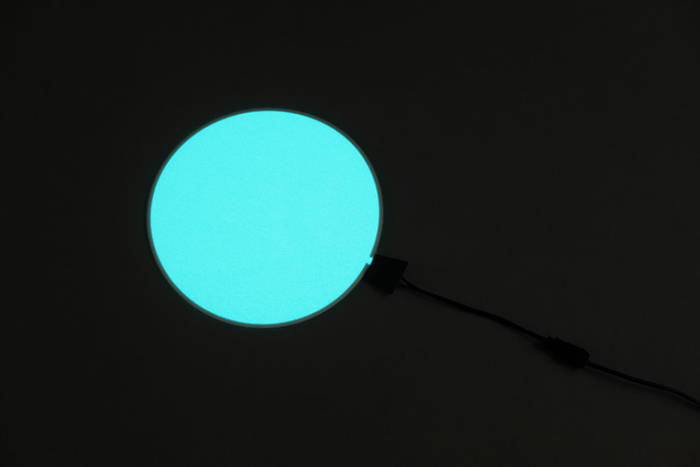

5 Inch Blue-Green Circle Electroluminescent (EL) Light Panel

5 Inch Blue-Green Circle Electroluminescent (EL) Light Panel

$18.00

In stock

The Technolight 5 Inch Circle EL Light Panel features our cool and natural Blue/Green phosphor color. This EL Lamp glows blue/green without any degradation from interior lighting or outdoor UV rays. One of the most popular colors for Electroluminescent backlighting.

In stock

SKU: 37261-P Categories: , ,

Product Description

The Technolight 5 Inch Blue/Green Circle Electroluminscent Light Panel features our latest in EL technology. Thin, flexible and ready to use with an easy latch connector, it is virtually plug and play. American made, with premium construction and the highest quality inks, this EL light panel can used in a wide variety of applications.

Total Lit Panel Area: 19.6 Sq In

Lit Panel Area LxW: 5″ x 5″

Overall Panel Dimensions: 5.24″ x 5.24″ x 0.012″

Thickness: 0.012″

Color: Blue-Green

Weight: 0.352 oz.

Printed Tail Dimensions: 0.4″ x 0.325″

Connector and Wire Description: 4″ Wire with 2-position JST connector

Brightness: @100V/400Hz 16.7 ft-L

Compatible Inverter Available

For cutting panel please reference the Technolight EL Spec Sheet

Download Spec Sheet
