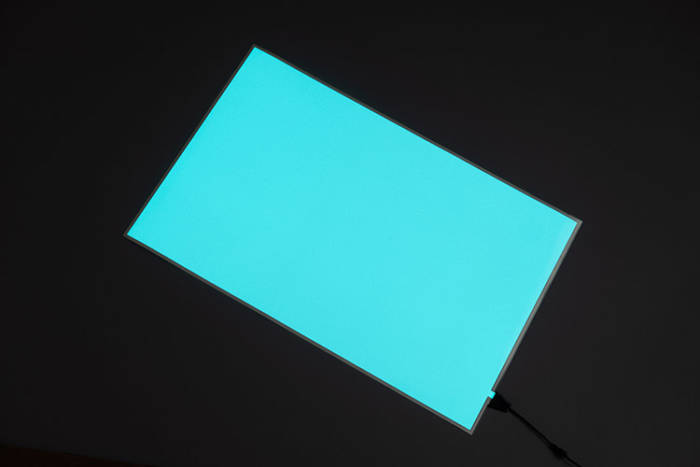

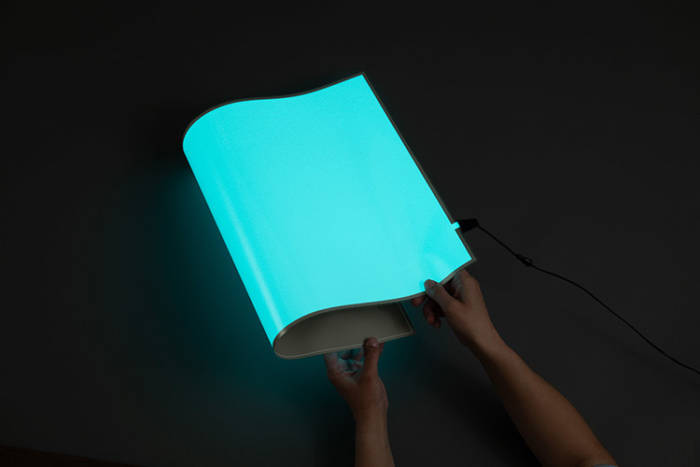

The Technolight 14 x 22 Inch Rectangle EL Light Panel features our cool and natural Blue/Green phosphor color. This EL Lamp glows blue/green without any degradation from interior lighting or outdoor UV rays. One of the most popular colors for Electroluminescent backlighting.
14 x 22 Inch Blue-Green Rectangle Electroluminescent (EL) Light Panel
The Technolight 14 x 22 Inch Blue/Green Rectangle Electroluminscent Light Panel features our latest in EL technology. Thin, flexible and ready to use with an easy latch connector, it is virtually plug and play. American made, with premium construction and the highest quality inks, this EL light panel can used in a wide variety of applications.
Total Lit Panel Area: 308 Sq In
Lit Panel Area LxW: 22″ x 14″
Overall Panel Dimensions: 22.56″ x 14.56″ x 0.012″
Weight: 3.712 oz.
Printed Tail Dimensions: 0.8″ x 0.325″
Connector and Wire Description: 4″ Wire with 2-position JST connector
Brightness: @100V/400Hz 16.7 ft-L
Compatible Inverter Available
For cutting panel please reference the Technolight EL Spec Sheet
