5 x 3 Inch UV Fade Resistant White Electroluminescent (EL) Technolight Sample Kit


In stock

The Technolight Sample Kit includes a 5 x 3 inch rectangle EL Light panel in UV fade resistant white, an American Flag graphic with removable adhesive and a latching JST connector AA battery powered inverter.

In stock

SKU: 28190-S Categories: , , ,

Product Description

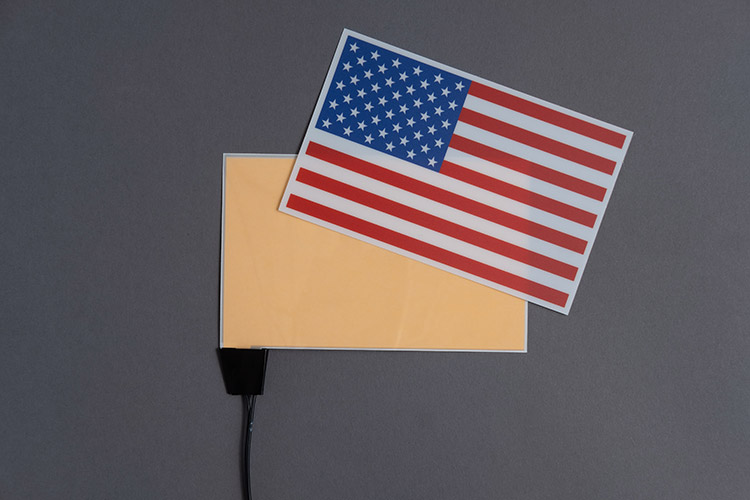

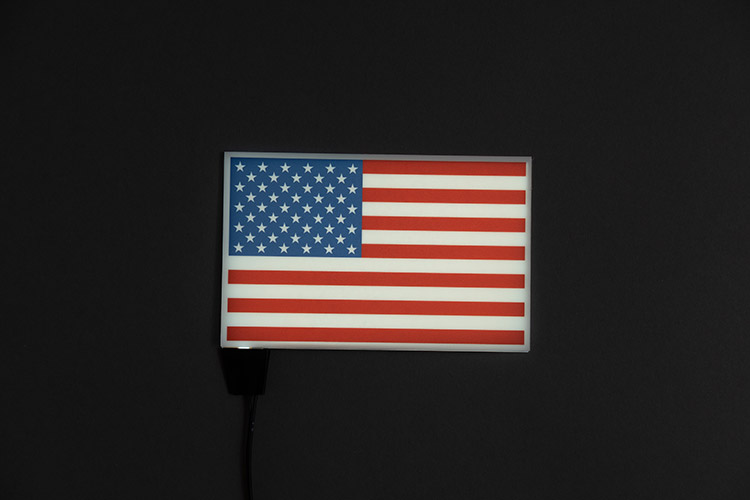

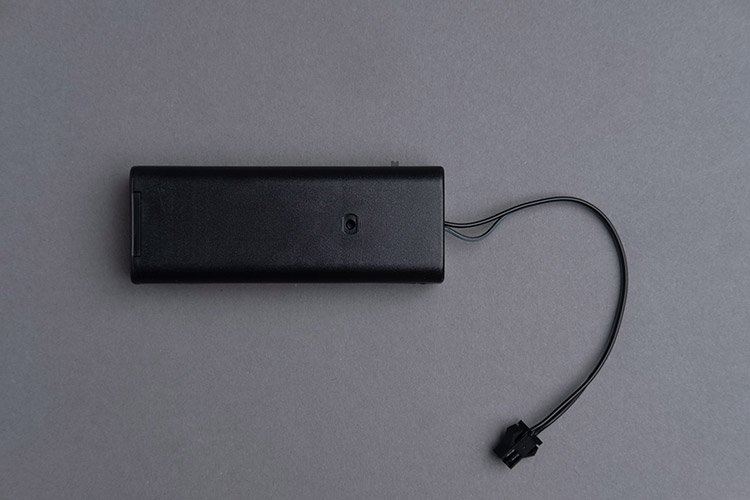

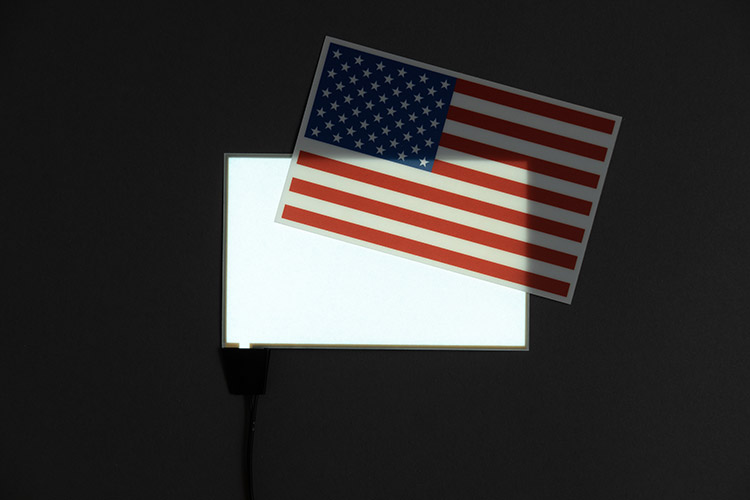

The Technolight Sample Kit includes a 5 x 3 Inch Rectangle EL Light Panel in our UV resistant and no-fading brilliant white color, a high definition digitally printed American Flag graphic and our compact Double A battery operated inverter with a JST latching connector. The graphic comes with removable adhesive for easy application. Batteries not included.

Total Lit Panel Area: 12.9 Sq In

Lit Panel Area LxW: 4.57″ x 2.82″

Overall Panel Dimensions: 4.75″ x 3.0″ x 0.012″

Thickness: 0.012″

Color: UV Fade Resistant White

Weight: 1.44 oz.

Printed Tail Dimensions: 0.3″ x 0.325″

Connector and Wire Description: 4″ Wire with 2-position JST connector

Brightness: @100V/400Hz 11.7 ft-L

Compatible Inverter Available

For cutting panel please reference the Technolight EL Spec Sheet

Download Spec Sheet
